Thermal stores – the perfect solution!

Posted 28th November 2018

Thermal stores provide the perfect solution for integrating different heat sources to maximise energy efficiency and delivering water and space heating.
Gledhill’s Product Manager, Wayne Hyde, explains how they work and looks at the benefits.

A thermal store is a vessel for storing and managing heat until it is needed. It differs from a conventional hot water cylinder as the stored water is not fed to the taps directly from the thermal store. Instead, it is heated up by passing through a plate heat exchanger that transfers heat from the thermal store water to the domestic water. Heat exchangers, especially flat-plate heat exchangers, have the ability to transfer a lot of heat in a short time – allowing householders to take a mains pressure shower or fill a bath very quickly.

A thermal store may contain one or more heat exchangers, in the form of internal coiled pipes or external flat-plate heat exchangers. It may also include an electrical heating element, such as an immersion heater.

Purpose-built thermal stores are designed and sized to take inputs from a number of different heat sources. It might store heat from a wood-fuelled boiler, solar thermal or a conventional gas or oil boiler.

Thermal stores can provide space heating and mains pressure hot water or can be used for hot water only.

Simple and safe

Open vented thermal stores offer the householder the comfort and luxury of a pressure system with heat produced from solid fuel appliances such as a wood burning stove, whilst providing a simple and inherently safe way to produce high performance mains pressure hot water.

The energy from the solid fuel appliance feeds into the thermal store which also provides the water that circulates around the heating system. This means that the energy available can be used to power the heating circuit and decrease the dependency on fossil fuel-based boilers, which will reduce household running costs.

It is very problematic to connect wood burning stoves or other uncontrolled heat sources to an unvented cylinder, and not easy to combine alternative energy heat sources to provide energy to the heating circuit, hence the unique advantages of a thermal store.

Here comes the sun

The energy produced from solar thermal can also be used to heat water via a thermal store.  The thermal store utilises a high-efficiency solar coil to allow the homeowner to benefit from natural solar energy produced during the day.  Once the solar energy available is insufficient to heat the store, it will revert to a conventional boiler as its primary heat source.

The central heating circuit can be supplied directly from a sealed system boiler although an auxiliary heating circuit can be connected from the store in which case the solar will also provide an input to the auxiliary heating circuit.

Multiple options

The full potential of a thermal store is achieved when it utilises a number of different heat inputs.

During the day the thermal store can utilise the heat from a high-efficiency solar thermal input to heat up the water in the store.

If the property has a wood burner, which is typically lit in the evening, this can also be connected to the system which will boost the temperature of the water in the thermal store generated by the solar energy during the day.

All of this can be backed up by a conventional boiler or an immersion heater.

And, for even greater energy efficiency, if a low carbon or renewable electricity source is available then this could be connected to the immersion element to provide heat input to the thermal store, decreasing the use of the fossil fuel boiler and hence reducing running costs.

Keeping flexible

A thermal store gives homeowners the flexibility to add multiple heat sources in the future as long as they are specified at the time of ordering.  So, for example, if your customer wants to connect their existing boiler and a wood burner now but is considering adding solar thermal in the future, then the cylinder you order must be specified to work with solar otherwise this cannot be added in the future.

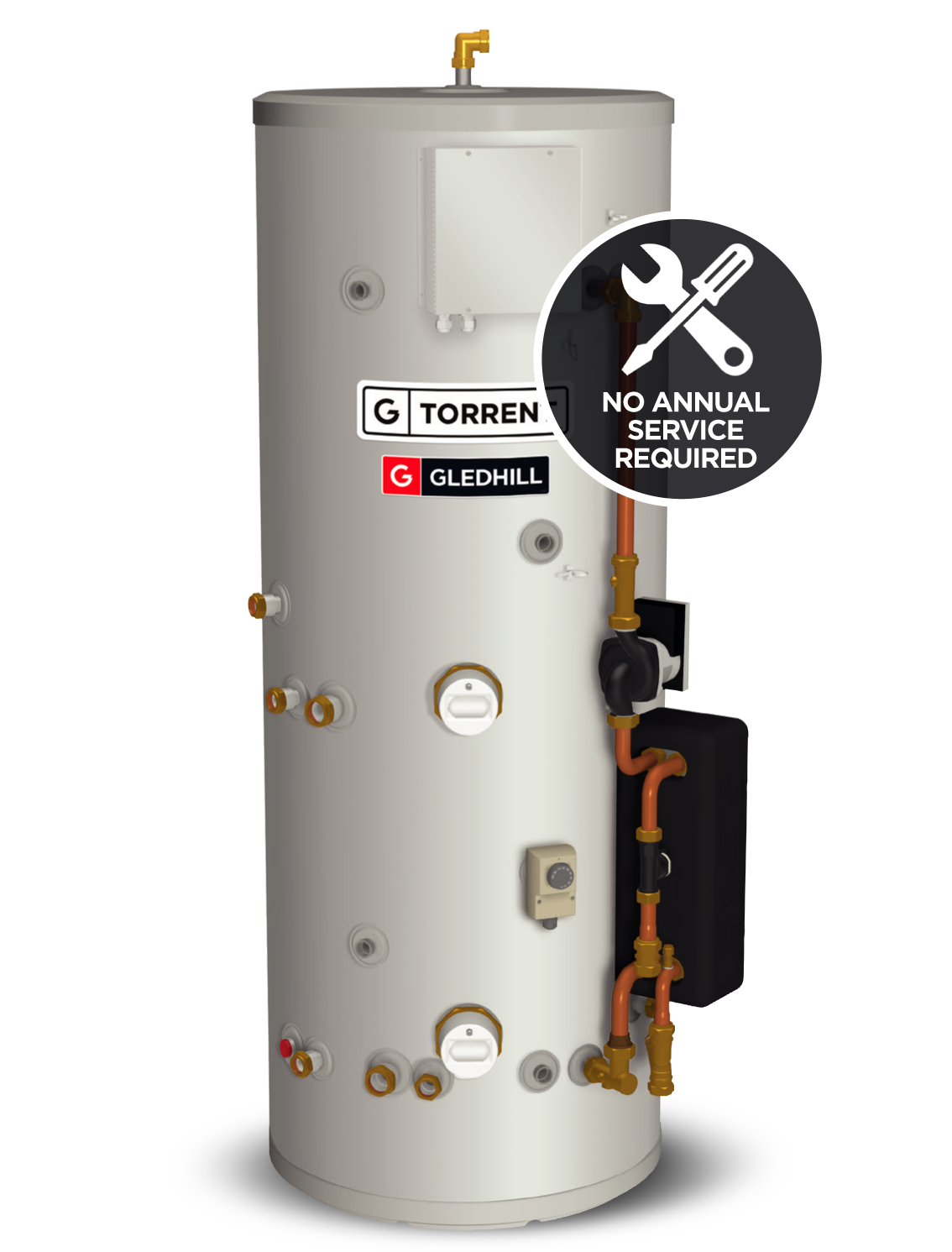

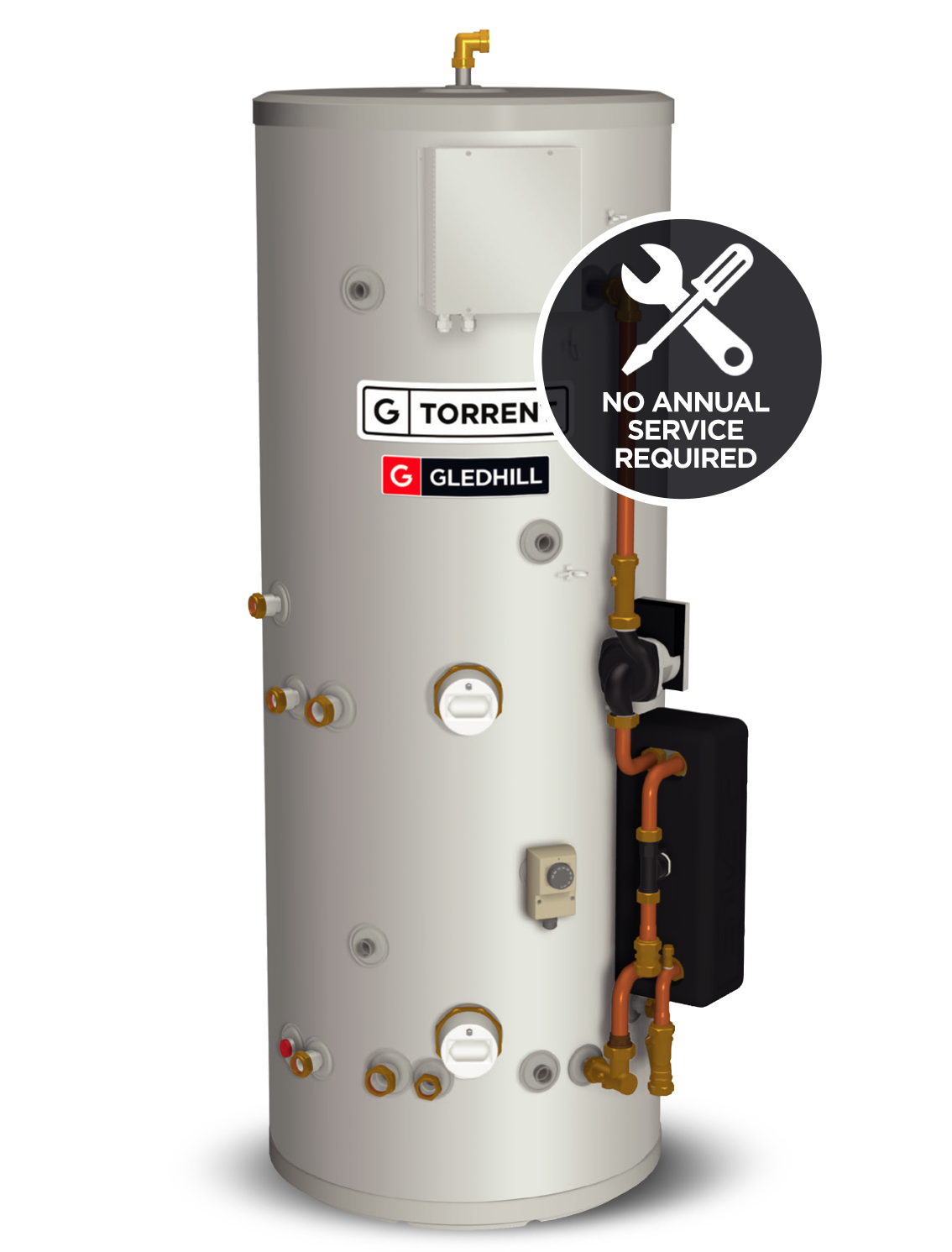

They are also a perfect solution in off-grid properties especially when they have wood burning appliances or range cookers such as Agas, reducing reliance on oil or LPG. The latest thermal stores from Gledhill are engineered to combine energy efficiency with style.  Manufactured from duplex stainless steel using precision engineering and with 50mm of insulation for improved heat loss ratings they are lightweight and easy to install.
