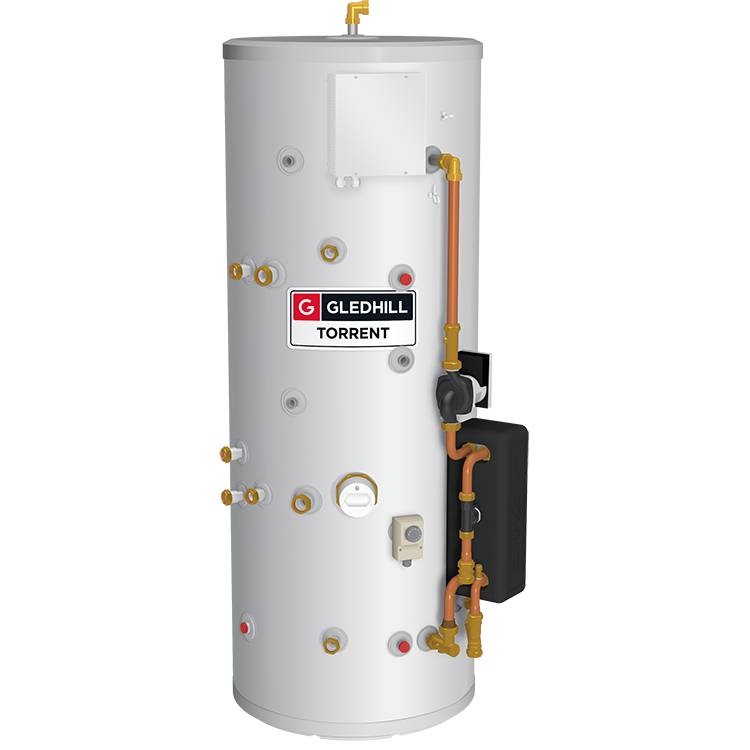

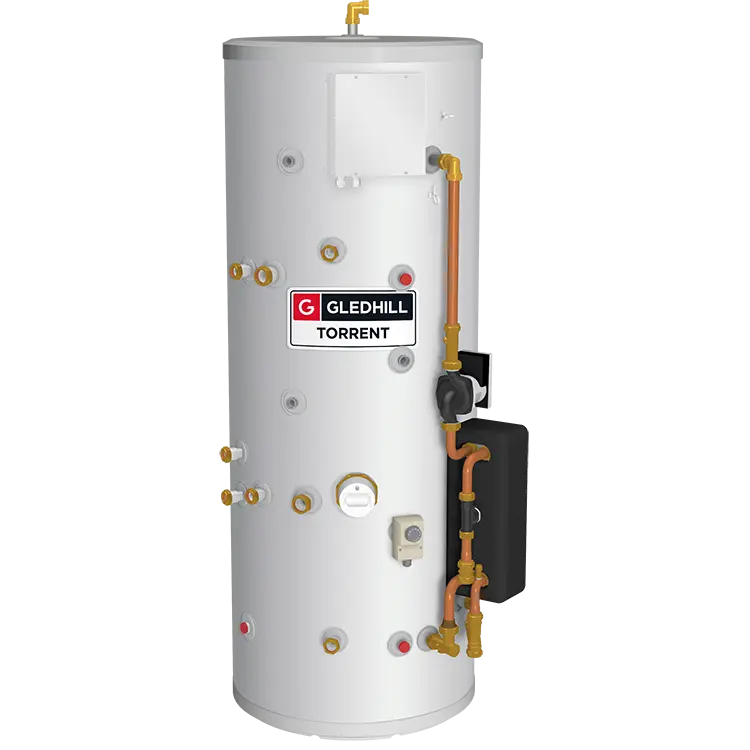

Torrent Stainless SP SOL

150 | 180 | 210 | 250 | 350 LITRES

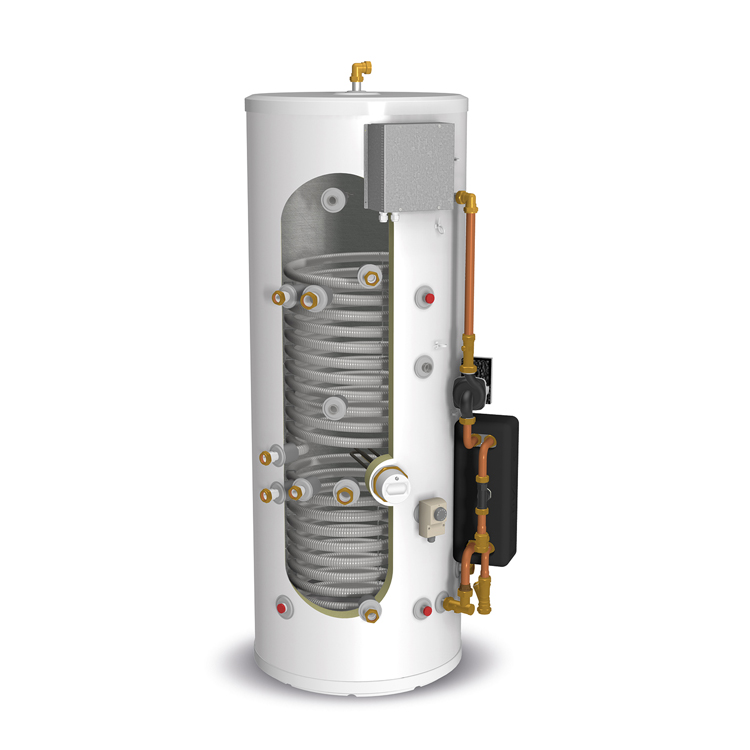

The Torrent Stainless SP SOL has been designed to enable the homeowner to utilise available energy from solar, a wood burning or solid fuel boiler as a heat source. The Torrent Stainless SP SOL then reverts to the energy provided by a conventional boiler once the energy from the alternative energy sources has been used.

Hot water and heating

The Torrent Stainless SP SOL provides high-performance mains pressure hot water via a highly efficient plate heat exchanger.

The central heating circuit is normally supplied directly from the boiler although an auxiliary heating circuit can be connected from the store in which case the solid fuel source will provide energy to the auxiliary heating circuit. Obviously, the energy output that can be provided by the auxiliary heating circuit will be limited to the energy input from the solid fuel appliance.

This sealed primary (SP) model permits the use of a smaller feed and expansion tank because the main central heating circuit does not need to be catered for. This can make positioning the F&E tank more straightforward.

Electric back-up

An immersion element is provided, and it is normally envisaged that this will be used as an emergency electric back-up for hot water and to provide emergency energy to the auxiliary heating circuit. However, if a low carbon or renewable electricity source is available then this could be connected to the immersion element to provide heat input to the thermal store, decreasing the use of the fossil fuel boiler and hence reducing running costs.

Features & Benefits

  • Specifically designed for use with
    solar thermal panels
  • Sealed primary boiler connections as
    standard
  • 3kW immersion heater for emergency
    back-up
  • Utilises solid fuel connections
  • Provides mains pressure hot water
  • Where there is no solar input, the coils
    can be connected to maximise heat
    input, reducing reheat time
